50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak

50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak


Product Features

1. Soft start: smooth start-up of appliances

2. Pure sine wave output waveform

3. DC/AC isolated

4. Universal protection circuit: over voltage protection, over thermal protection, short circuit protection, overload rotection, polarity reverse protection, low voltage protection

5. Low interference technology

6. With power ON/OFF switch and two-color LED indicator: power, fault

7. The surge power twice as rated power

8. Thermal methods: cooling fans, 30% load auto. on

9. two years warranty


Technical Parameters

Power6000W6000W6000W6000W6000W6000W
Peak power12000W(5ms)
Input voltage12V24V48V12V24V48V
Output voltage110VAC±10%220VAC±5%
No-load current<2.7A(DC13V)<1.7A(DC26V)<1.5A(DC52V)<2.5A(DC13V)<1.7A(DC26V)<1.5A(DC52V)
Output frequency50HZ±1%/60HZ±1%
Output waveformPure sine wave
Output harmonic contentTHD<3%
Output efficiency>86%(DC13V)>88%(DC26V)>90%(DC52V)>86%(DC13V)>88%(DC26V)>90%(DC52V)
Input voltage range11V~15V22V~30V44V~60V11V~15V22V~30V44V~60V
Low voltage alarm10.5±0.3V21±0.6V41.8±1.2V10.5±0.3V21±0.6V41.8±1.2V
Low voltage shutdown9.5±0.2V19±0.3V38±0.4V9.5±0.2V19±0.3V38±0.4V
Over voltage shutdown16±0.5V31±1V65±2V16±0.5V31±1V65±2V
Low voltage recovery11.8±0.3V23.6±0.4V47.2±0.8V11.8±0.3V23.6±0.4V47.2±0.8V
Over voltage recoverty15.7±0.3V31.8±0.4V63±1V15.7±0.3V31.8±0.4V63±1V
Overload shutdown120%~125%
Protecting function descriptionLow voltage: Red LED turn on,buzzer alarm,auto recovery
Over voltage:Red LED turn on,auto recovery
Overload:Red LED turn on,auto shutdown, restart by hand
Over temperature:Red LED turn on,buzzer alarm,auto recovery
Short circuit:auto recovery
Reverse connection of the battery terminal:blown fuse
Operating temperature–10℃ +40℃
Storage temperature–30℃+70℃
Relative humidity20%~90%RH No condensation
Operating height≦3000m
shape size544*199*146mm
Net weight13.6±0.1kg13.2±0.1kg13.0±0.1kg13.6±0.1kg13.2±0.1kg13.0±0.1kg
Packing size670*290*270mm
Gross weight16.1±0.1KG15.7±0.1KG15.5±0.1KG16.1±0.1KG15.7±0.1KG15.5±0.1KG
Product Display

Product Applications

1. In-car or on-boat devices series: military vehicle,police cars, medical ambulance, ships, traffic lights, and etc.

2. Industry equipment series: solar energy, wind power, gas discharge lamp, and etc.

3. Office area: computer, printer, copier, scanner, digital camera, and etc.

4. Kitchen utensils series: micro-wave oven, induction cooker, refrigerator, and etc.

5. House appliance devices: electric fans, vacuum cleaner, air conditioner, lighting lamps, and ect.

6. Power tool series: electric saw, drilling machine, punching machines, air compressor, and etc.

Accessories&Package

About us

50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak

Tips

When you inquiry, please tell me which input voltage, output voltage, frequency and socket you choose.

DC input voltage: 12V, 24V, 48V

AC output voltage: 100V, 110V, 120V, 220V, 230V, 240V

Frequency: 50HZ, 60HZ, 50Hz/60Hz (with frequency switch)

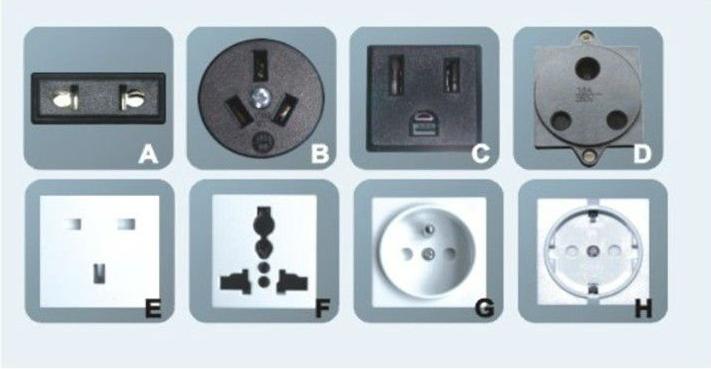

Socket types: Chinese(A), Australia(B), USA(C), South African(D), UK(E), Universal(F), France(G), Germany/

Euro(H)

Please tell me your quantity.

If you want to know postage or freight, please tell me your address, postcode or shipping port.
