    2500W Single Phase Inverter Pure Sine Wave Hybrid Solar Inverter With Switching

    Ask Lasest Price
    Brand Name : XIAOYANG
    Model Number : XY2500225S
    Certification : CE
    • Product Details
    • Company Profile

    2500W Single Phase Inverter Pure Sine Wave Hybrid Solar Inverter With Switching

    2500W Single Phase Inverter Pure Sine Wave Hybrid Solar Inverter With Switching


    Product Features

    1. Soft start: smooth start-up of appliances
    2. Pure sine wave output waveform
    3. DC/AC isolated
    4. Universal protection circuit: over voltage protection, over thermal protection, short circuit protection,
    overload protection, polarity reverse protection, low voltage protection
    5. Low interference technology
    6. With power ON/OFF switch and two-color LED indicator: power, fault
    7. The surge power twice as rated power
    8. Thermal methods: cooling fans, 30% load auto. on
    9. two years warranty


    Technical Parameters

    Power2500W2500W2500W2500W2500W2500W
    Peak power5000W(5ms)
    Input voltage12V24V48V12V24V48V
    Output voltage110VAC±10%220VAC±5%
    No-load current<1.8A(DC13V)<1.11A(DC26V)<0.9A(DC52V)<1.8A(DC13V)<1.11A(DC26V)<0.9A(DC52V)
    Output frequency50HZ±1%/60HZ±1%
    Output waveformPure sine wave
    Output harmonic contentTHD<3%
    Output efficiency>86%(DC13V)>88%(DC26V)>90%(DC52V)>86%(DC13V)>88%(DC26V)>90%(DC52V)
    Input voltage range11V~15V22V~30V44V~60V11V~15V22V~30V44V~60V
    Low voltage shutdown10±0.2V20±0.4V40±0.8V10±0.2V20±0.4V40±0.8V
    Over voltage shutdown15.5±0.5V31.0±1.0V62±2.0V15.5±0.5V31.0±1.0V62±2.0V
    Low voltage recovery13.6±0.3V27.2±0.6V54.4±1.2V13.6±0.3V27.2±0.6V54.4±1.2V
    Over voltage recoverty15.2±0.5V30.4±1.0V60.8±2.0V15.2±0.5V30.4±1.0V60.8±2.0V
    Overload shutdown120%~125%
    Protecting function descriptionLow voltage: Red LED turn on,buzzer alarm,auto recovery
    Over voltage:Red LED turn on,auto recovery
    Overload:Red LED turn on,auto shutdown, restart by hand
    Over temperature:Red LED turn on,buzzer alarm,auto recovery
    Short circuit:auto recovery
    Reverse connection of the battery terminal:blown fuse
    Operating temperature–10℃ +40℃
    Storage temperature–30℃+70℃
    Relative humidity20%~90%RH No condensation
    Operating height≦3000m
    shape size494*199*73mm
    Net weight6.3±0.05kg6.15±0.05kg6.0±0.05kg6.3±0.05kg6.15±0.05kg6.0±0.05kg
    Packing size530*300*240mm
    Gross weight7.3±0.05kg7.15±0.05kg7.0±0.05kg7.3±0.05kg7.15±0.05kg7.0±0.05kg

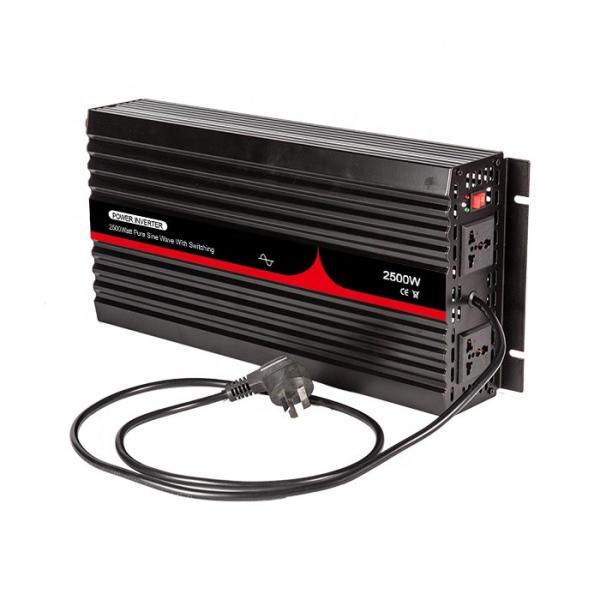

    Product Display

    Product Applications

    1. In-car or on-boat devices series: military vehicle,police cars, medical ambulance, ships, traffic lights, and etc.
    2. Industry equipment series: solar energy, wind power, gas discharge lamp, and etc.
    3. Office area: computer, printer, copier, scanner, digital camera, and etc.
    4. Kitchen utensils series: micro-wave oven, induction cooker, refrigerator, and etc.
    5. House appliance devices: electric fans, vacuum cleaner, air conditioner, lighting lamps, and ect.
    6. Power tool series: electric saw, drilling machine, punching machines, air compressor, and etc.


    Tips

    When you inquiry, please tell me which input voltage, output voltage, frequency and socket you choose.
    DC input voltage: 12V, 24V, 48V
    AC output voltage: 100V, 110V, 120V, 220V, 230V, 240V
    Frequency: 50HZ, 60HZ, 50Hz/60Hz (with frequency switch)
    Socket types: Chinese(A), Australia(B), USA(C), South African(D), UK(E), Universal(F), France(G),
    Germany/Euro(H)
    Please tell me your quantity.
    If you want to know postage or freight, please tell me your address, postcode or shipping port.
