1A 6V Insect Killing Lamp Solar Power Controller Ip22 For Li Ion Battery

Ningbo XiaoYang technology Co.,Ltd.
Contact Now
    Buy cheap 1A 6V Insect Killing Lamp Solar Power Controller Ip22 For Li Ion Battery from wholesalers

    Buy cheap 1A 6V Insect Killing Lamp Solar Power Controller Ip22 For Li Ion Battery from wholesalers
    • Buy cheap 1A 6V Insect Killing Lamp Solar Power Controller Ip22 For Li Ion Battery from wholesalers

    1A 6V Insect Killing Lamp Solar Power Controller Ip22 For Li Ion Battery

    Ask Lasest Price
    Brand Name : xiaoyang
    Model Number : XY1001
    Certification : CE and RoHs
    Supply Ability : 5000 PCS per month
    Delivery Time : 8-15 days
    • Product Details
    • Company Profile

    1A 6V Insect Killing Lamp Solar Power Controller Ip22 For Li Ion Battery

    1A 6V Insect Killing Lamp Solar Power Controller Ip22 For Li Ion Battery


    Overview

    Place of Origin: Zhejiang, China (Mainland)

    Brand Name: XIAOYANG

    Model Number: XY1001

    Application: Charger Controller, Outdoor/Streetlight/homeuse

    Rated Voltage: 6V

    Maximum Current: 5A

    Product name: XY mini solar charge controller

    Charge mode: PWM Charging

    Type: Li-ion / Lead acid battery

    Certification: Ce Rohs

    Warranty: 18 months

    Display: indicator lights

    Level: IP22

    Gross Weight: 0.2 KG

    Package Dimension: 15*10*5 CM



    Specification

    ModelXY1001
    Rated Voltage6V/12V
    Strong Charging Pressure7.4/14.8V
    Equilibrium Charging7.25/14.5V
    Float Charging Pressure6.85/13.7V
    Under Voltage5.4V/10.8V
    Under Recover Voltage6.5/13V
    Non-Load Current≤6mA
    Charging Circuit Voltage Drop≤0.2V
    Discharge Circuit Voltage Drop≤0.1V
    Maximum Charging Current1A 3A 5A
    Maximum Load Current1A 3A 5A
    Controller Protectionovercharge, over-discharge, over-current, short-circuit, reversed
    Charging ModePWM
    Gross Weight50g
    Product Dimension79.5*52*21.5mm
    Protection LevelIP22


    Product Description

    1.The model integrate household type and street lamp type design in one controller

    2.The controller can be applied to 6V/ 12V battery system(Lead acid or Li-ion battery)

    3.The controller has light control and time control (street lamp type)

    4.The controller has many protective measures,such as overcharge, discharge, over current, short circuit, reversed

    5. The controller with precise design and high protective measures

    6.With three charging mode, Strong charging, equilibrium charging, floating three-step PWM control are included


    SupplyAbility


    SupplyAbility:
    5000 Piece/Pieces per Month


    Packaging & Delivery

    Packaging Details

    one piece into one white box, 50pcs into one caton,100pcs into one caton,500pcs into one caton

    Port

    Shanghai or Ningbo

    Lead Time :

    3-5 days for sample, 15-30 days for bulk orde

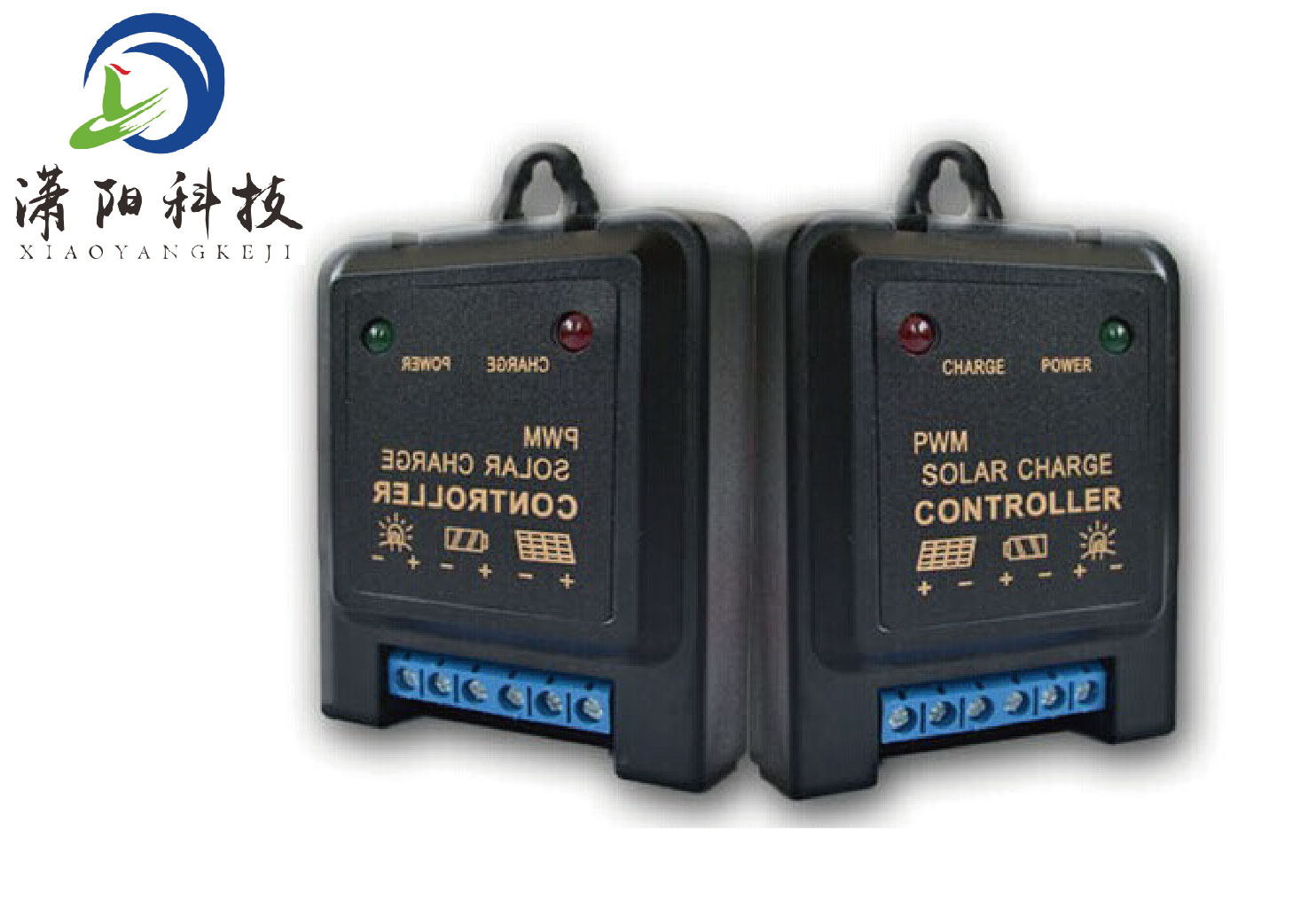

    Product Pictures




    About us


    Ningbo XiaoYang technology Co.,Ltd. has entered the inverter power supply industry for more than ten years. After years of development, it has grown into an integrated design, research and production of inverters and solar off-gird power generation equipment. And can provide continuously innovative high-tech enterprises according to customer needs. With strong technical strength, advanced equipment and standardized management, we are specialized in providing customers with products that are more competitive and conform to the market trend value. From inverters to smart chargers, from solar controllers to inverter combined with controller, we have always maintained the same quality. Years of industry experience have made us more technologically advanced.


    The company has a series of automated production equipment, professional technical team, using high quality raw materials to ensure our products can be through all kinds of testing standard, we provides the high-quality service for the customers with professional knowledge.


    In the future, we will continue to improve our quality and service level as always. We will adhere to the business philosophy of “innovation, prudence and mutual gains” to meet the needs of our customers to the greatest extent. We sincerely hope to cooperate with you in a friendly way to achieve mutual gains situation and seek common development.


    FAQ

    Q1: Can I get one for sample?
    A1: Yes, we accept sample order or trial order for testing first.


    Q2: What's the price and MOQ?
    A2: Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.


    Q3: What's you delivery time?
    A3: It depends on your quantity, but usually, 7 days for sample order, 30-45days for batch order


    Q4: How about your payment and shipment?
    A4: Payment: We accept T/T, Western Union,Paypal etc. terms of payment.
    Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc.,for batch order, by sea or by air( through our forward)


    Q5: How about your warranty?
    A5: Normally,we provide 18 months warranty,and whole life technical support.


    Q6. Do you have you own factory?
    A6: Yes,we are leading manufacturer mainly in off grid solar power inverter,solar charge controller and systems ect.for about 12 years
